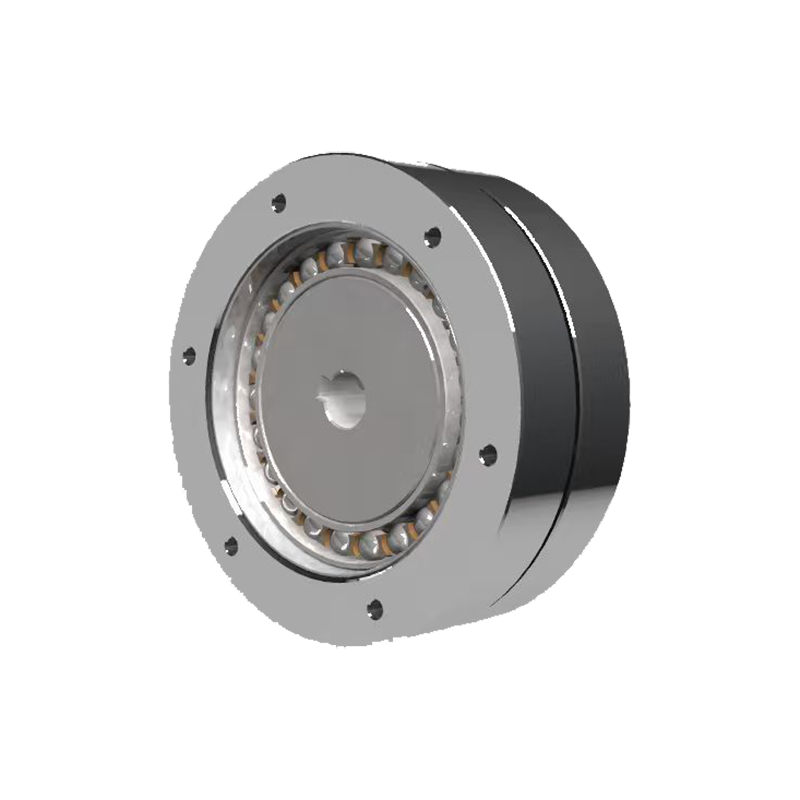

The FBS-U-C Type is a versatile, high-performance harmonic reducer designed to handle a broad range of industrial requirements.
Building on the core FB Series technology, the FBS-U-C offers a wider selection of sizes and ratios.
It is engineered to withstand extreme pressure without grease failure, thanks to its enhanced load-bearing capabilities and customizable backlash settings, ensuring the reducer remains in optimal condition regardless of the operational environment.
Key advantages of the FSS unit include:
Increased Load Capacity: Leveraging the FB tooth profile, the FBS-U-C delivers a 15% increase in load-bearing capacity compared to standard profiles, making it suitable for demanding dynamic loads.
Optimized Performance: The design prevents grease failure under extreme pressure by minimizing sliding friction.
Flexible Configuration: During development, the flexspline tooth profile is matched to the radial displacement of the generator, allowing for precise backlash adjustment to suit specific application conditions.
| Model | Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed | Permissible average input rotational speed | Backlash | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grease | Grease | |||||||||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | ||
| 11 | 50 | 3.5 | 0.36 | 8.3 | 0.85 | 5.5 | 0.56 | 17 | 1.7 | 3600 | 2500 | ≤40 |
| 80 | 5 | 0.51 | 11 | 1.12 | 8.9 | 0.91 | 25 | 2.55 | ||||
| 100 | 5 | 0.51 | 11 | 1.1 | 8.9 | 0.91 | 25 | 2.6 | ||||
| 14 | 50 | 5.4 | 0.55 | 18 | 1.8 | 6.9 | 0.7 | 35 | 3.6 | 3600 | 2500 | ≤40 |
| 80 | 7.8 | 0.8 | 23 | 2.4 | 11 | 1.1 | 47 | 4.8 | ||||
| 100 | 7.8 | 0.8 | 28 | 2.9 | 11 | 1.1 | 54 | 5.5 | ||||
| 17 | 50 | 16 | 1.6 | 34 | 3.5 | 26 | 2.6 | 70 | 7.1 | 3600 | 2500 | ≤40 |
| 80 | 22 | 2.2 | 43 | 4.4 | 27 | 2.7 | 87 | 8.9 | ||||
| 100 | 24 | 2.4 | 54 | 5.5 | 39 | 4 | 108 | 11 | ||||
| 20 | 50 | 25 | 2.5 | 56 | 5.7 | 34 | 3.5 | 98 | 10 | 3600 | 2500 | ≤40 |
| 80 | 34 | 3.5 | 74 | 7.5 | 47 | 4.8 | 127 | 13 | ||||
| 100 | 40 | 4.1 | 82 | 8.4 | 49 | 5 | 147 | 15 | ||||
| 25 | 50 | 39 | 4 | 98 | 10 | 55 | 5.6 | 186 | 19 | 3600 | 2500 | ≤40 |
| 80 | 63 | 6.4 | 137 | 14 | 87 | 8.9 | 255 | 26 | ||||
| 100 | 67 | 6.8 | 157 | 16 | 108 | 11 | 284 | 29 | ||||
| 32 | 50 | 76 | 7.8 | 216 | 22 | 108 | 11 | 382 | 39 | 3600 | 2300 | ≤40 |
| 80 | 118 | 12 | 304 | 31 | 167 | 17 | 568 | 58 | ||||
| 100 | 137 | 14 | 333 | 34 | 216 | 22 | 647 | 66 | ||||
Industrial Robot
Service Robots
Meal Machine Tools
Medical Devices
Analysis,Test Equipment
Energy Related Equipment
Papermaking Equipment
